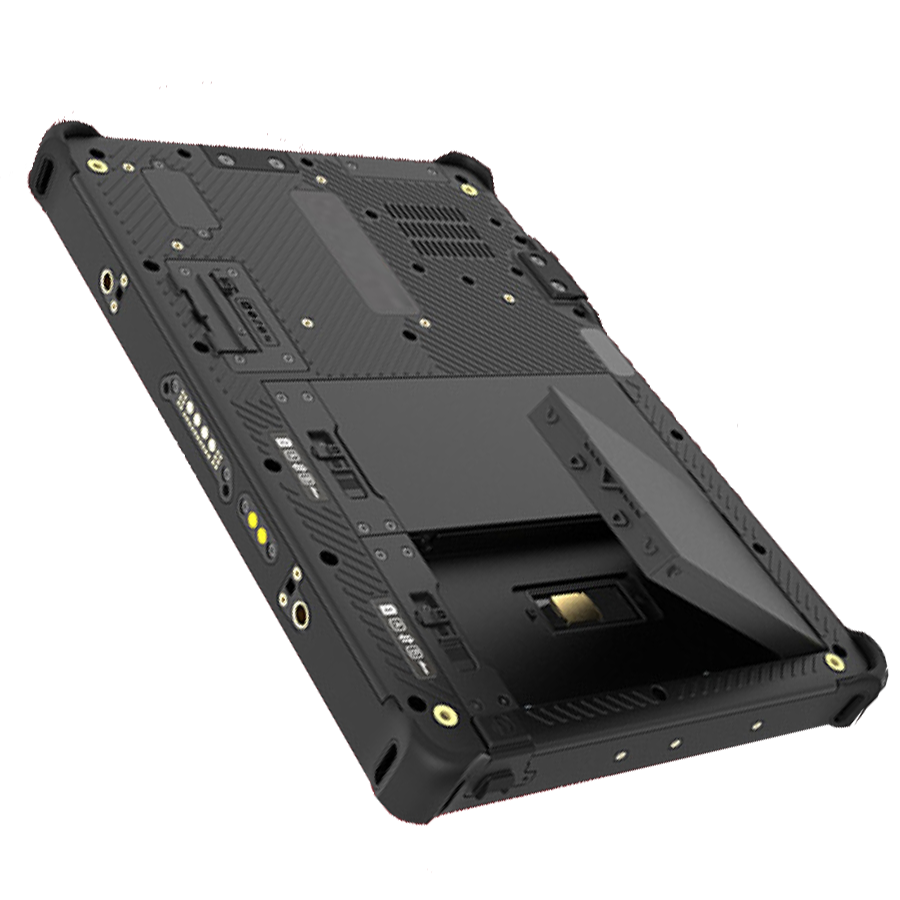

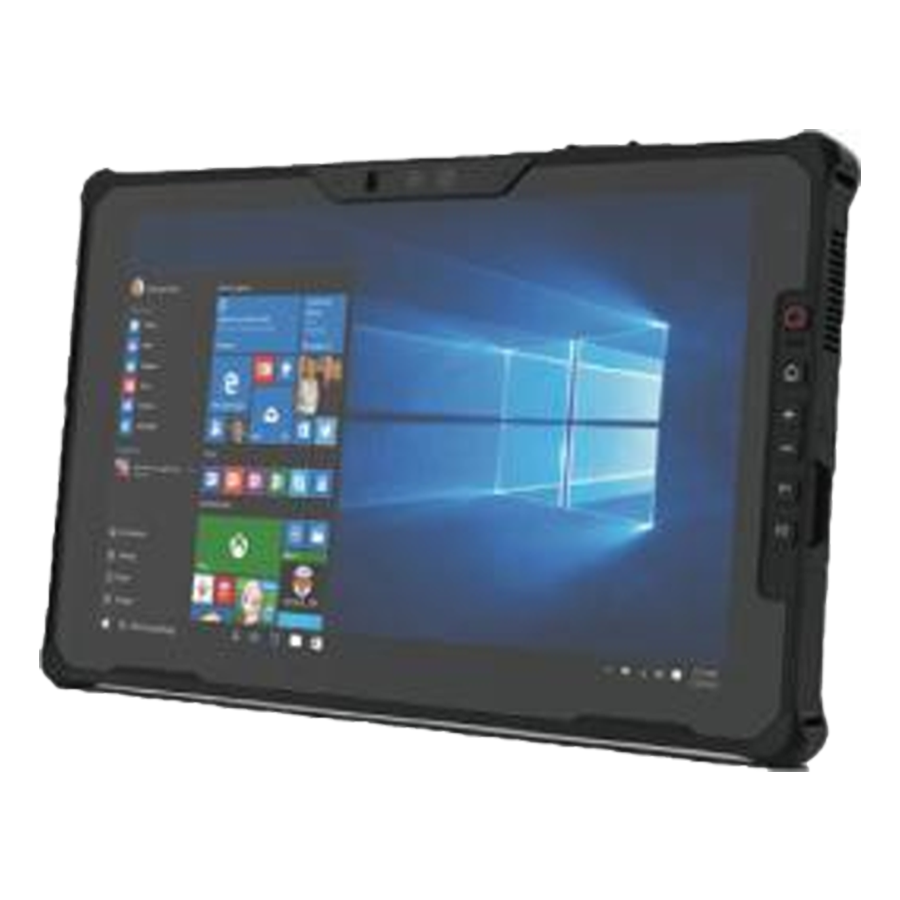

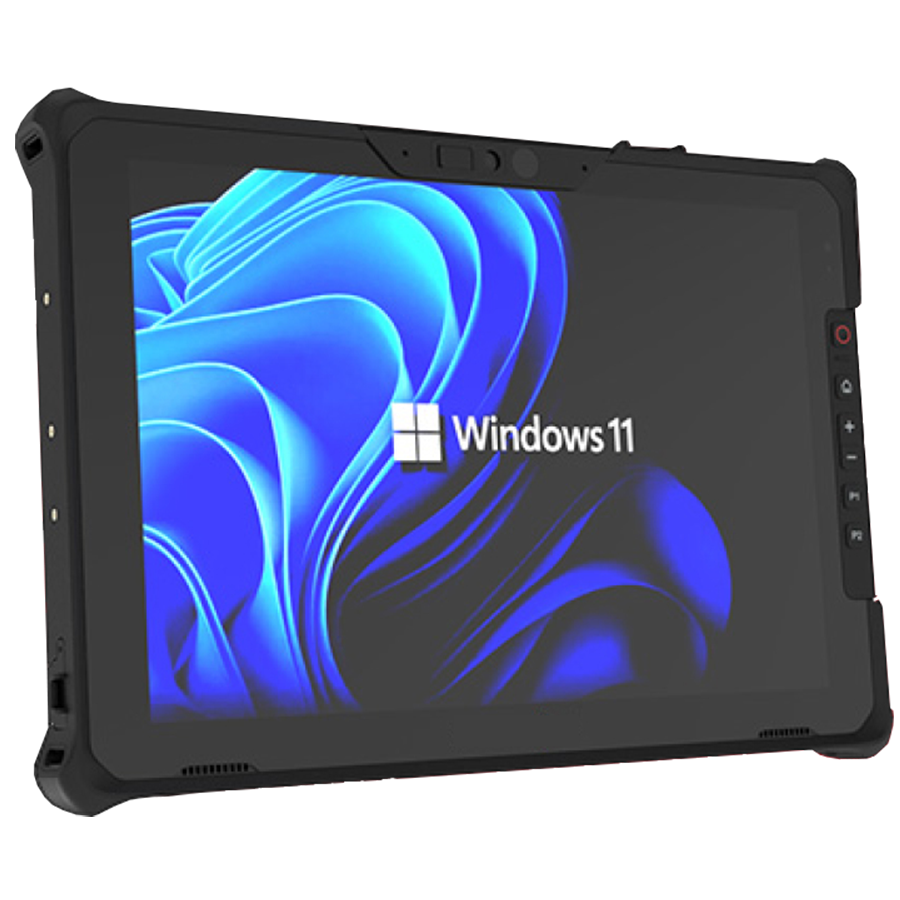

| 12" Rugged Tablet | |
DISPLAY |
12" 2160 x 1440 1000 nits high brightness 10-point Capacitive Touch supports glove touch with Gorilla Glass Capacitive multi-touch screen supports glove touch, water rejection, palm rejection, 2mm hard tip stylus |
| O.S. Support | Windows® 11 IoT Enterprise Value (64bit, Multi-Language), |
| Processor | Arrow Lake Core Ultra 5 225U / Arrow Lake Core Ultra 7 255U |
| Memory | 8GB-32GB (64GB TBD) DDR5 SO-DIMM |
| Storage | 500 GB-2TB M.2 SSD |
Communication |
Intel Wi-Fi 7 Wi-Fi 7 802.11eb Optional 4G LTE/5G (Sub-6g) / GNSS (GPS/ Glonass / BeiDou) |
Camera |
2MP front CAMERA Option 5MP windows hello / 11MP auto focus rear camera with LED flash |
| Control Btton | Programmable button x 2 Power, Volume, Windows button |
I/O In terface |
USB 3.2 Gen1 type A x 1 USB 3.2 type C x 2 (support Thunderbolt & charging) Speaker x 2 (front side) Audio jack (headphone/ microphone combo) x 1 Sim slot x 1, eSim x 1 Docking connector x 1 Optional RF pass-through x 2 RS-232 x 1 (available for option USB 2.0 / RJ45 / 2D barcode reader) |
Power |
USB-C AC adapter (65W, 100-240V AC, 50/60Hz) Fast charging supported Standard : 3010 mAh, 11.625V, Dual hot swappable batteries |
Rugged Feature |
IP65, MIL-STD-810H and MIL-STD-461G certified Vibration, shock and 5-foot drop resistance |
| Security | TPM2.0 |
| Dimension | 304 x 209 x 23.9 mm (12” x 8.2” x 0.94”) (W x H x D) |
| Weight | 1.5kg (3.3lbs) |
Environmental |
Operating temperature : -20° C to +60° C I Storage temperature : -30° C to +70° C Humidity : 95%, non-condensing |
